Switching_time_tests

Published:2009/7/23 21:48:00 Author:Jessie | From:SeekIC

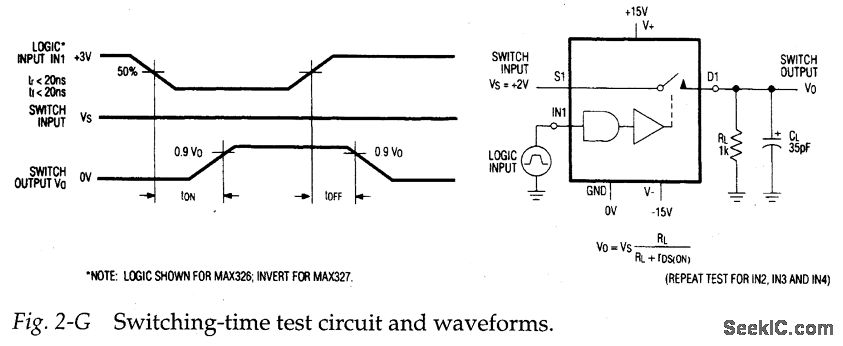

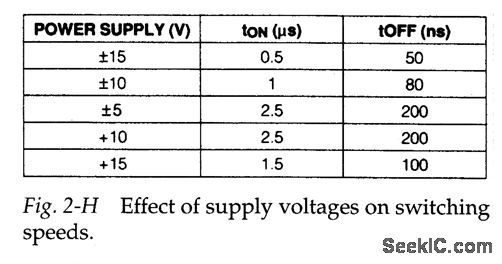

Figure 2-G shows a test circuit and waveforms for measuring switching time for the MAX326/27 .As a point of reference, tON should be between 500 and 1000 ns, with tOFF between 50 and 500 ns. Figure 2-H shows how switching speeds are affecter by supply voltages.
