Strobeflash_slave_adapter

Published:2009/7/22 21:34:00 Author:Jessie | From:SeekIC

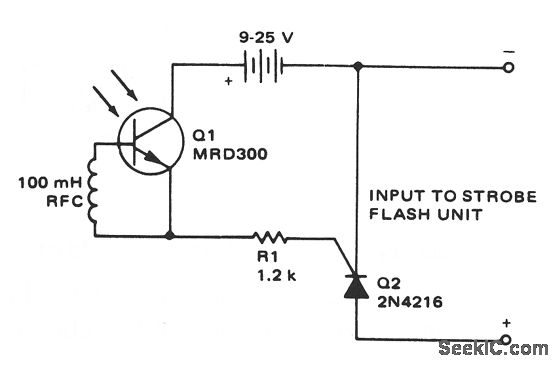

This circuit provides the drive needed to trigger a slave strobeflash, without wires between the master and slave units. When light from the master strobeflash strikes Q1, Q2 is triggered, which applies power to the slave unit.
