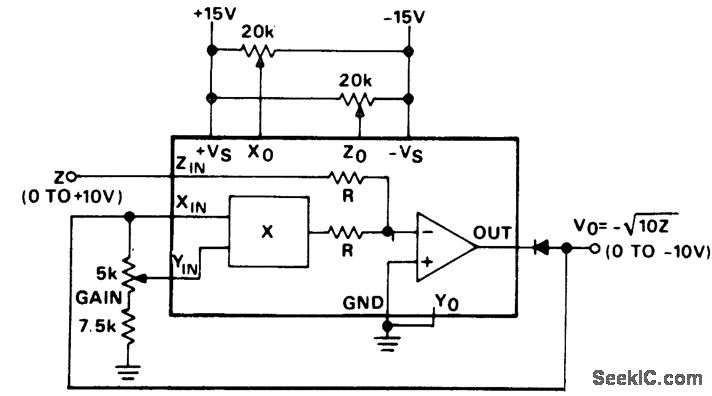

Square rooter using an AD533 multiplier/divider chip. With Z equal to +0.1 volt DC adjust ZO for a-1.0 volt DC output. With Z equal to +10.0 volts DC adjust gain for-10.0 volts DC output.With Z equal to +2.0 volts DC adjust Xo for a -4.47±0.1 volt DC output (courtesy Analog Devices,Inc.).
