Single_balanced_mixer

Published:2009/7/23 22:27:00 Author:Jessie | From:SeekIC

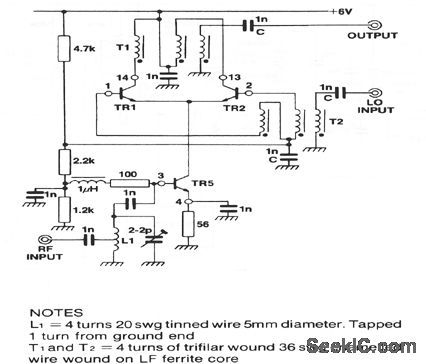

This circuit shows an SL2365 transistor array (Fig.2-35B) connected as a balance mixer, with a gain of 13 dB, a third-order incercept of -13 dB, and a noise figure of 10 dB.
