Simple_log_IF_strip

Published:2009/7/22 6:40:00 Author:Jessie | From:SeekIC

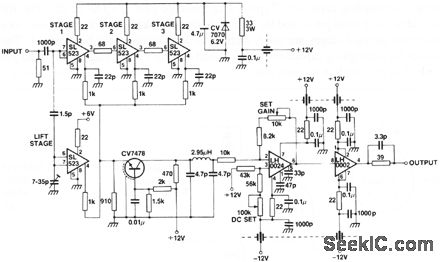

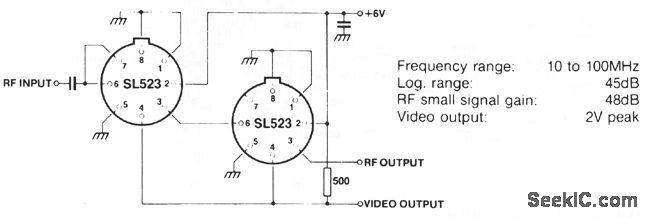

The SL523 shown In this figure is similar to the SL521 shown in Fig.3-2，except that the SL523 is a dual amplifier and provides an approximate 24～dB gain. Typical value for the supply decoupling capacitor is 3 nF.
