Simple_dc_power_control

Published:2009/7/21 21:37:00 Author:Jessie | From:SeekIC

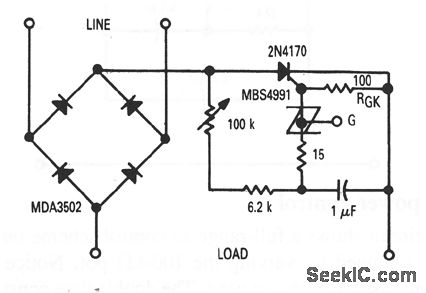

This circuit shows a simple dc full-wave control scheme that uses an SCR and an SBS. Control is obtained by varing the 100-kΩ pot. Notice that R1, can be omitted when triacs with nonsensitive gates are used.
