STEREO_MULTIPLEXER

Published:2009/7/24 3:15:00 Author:Jessie | From:SeekIC

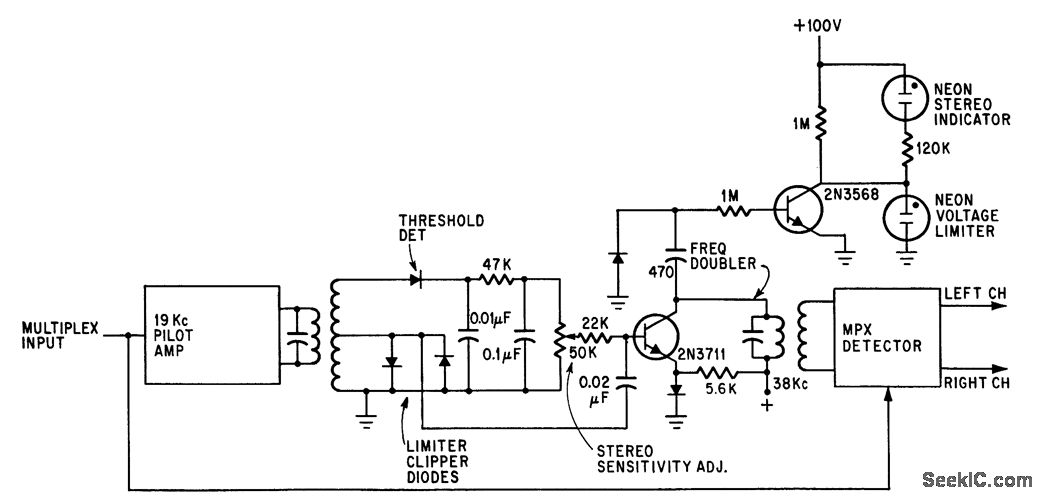

F-m retention is monaural when 19-kc multiplex input is absent or below acceptable power level. Rectification of 19-kc signal provides turn-on voltage to frequency doubler, for stereo.-S. Messin and T. E. Nawalinski, A Solid Stale Stereo Set Built in Modules, Electronics, 38:16, p 88-92.
