SQUARE_WAVE_OSCILLATOT

Published:2009/6/25 21:26:00 Author:Jessie | From:SeekIC

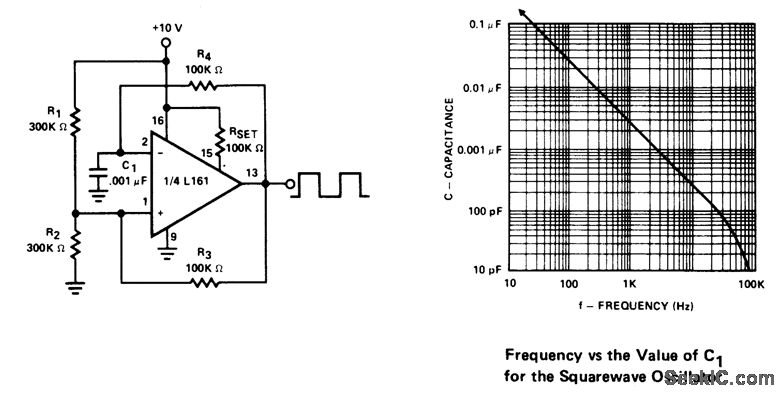

This generator is operable to over 100 kHz. The low frequency limit is determined by C1. Frequency is constant for supply voltages down to +5 V.
