SPIKE_CLIPPER

Published:2009/7/21 22:16:00 Author:Jessie | From:SeekIC

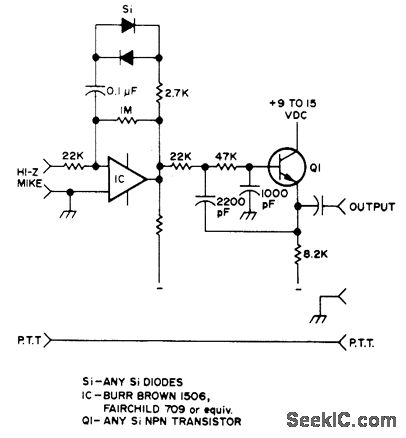

Improves efficiency of low-power SSB amateur transmitter by removing from voice waveform the spikes that cause over modulation or give low average modulation level. When used as in-line microphone amplifier, circuit gives up to 20-dB equivalent gain at receiving location.-H. E. Weber, Increase Your SSB Efficiency, 73 Magazine, Dee. 1973, p 71.
