SOLID_STATE_TIMER

Published:2009/7/23 22:24:00 Author:Jessie | From:SeekIC

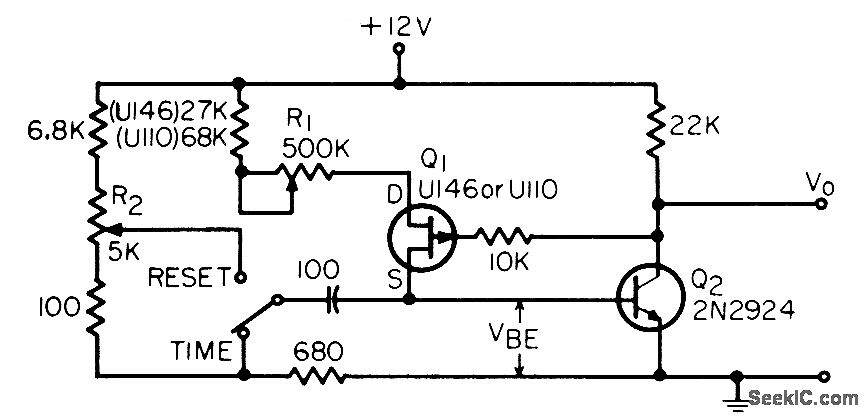

Uses fet constant-current source to eliminate timing errors due to unregulated power supplies and line transients. Range of 0.1 to 50 sec is con trolled by R2.-J. Geekie, Simple Fet Timer, EEE, 14:3, p 62.
