SLIDING_GATE_FOR_HEART_SOUNDS

Published:2009/7/20 21:05:00 Author:Jessie | From:SeekIC

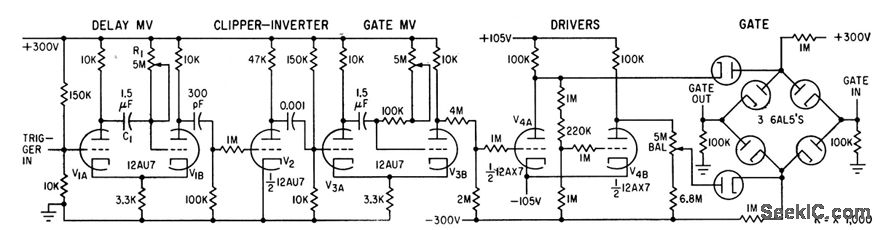

Two multivibrators, synchronized with time reference,permit listening to selected portions of heart sound. Potentiometers permit adjusting width and position of gate.-R. Weiss, Heart-Sound Discriminator Simplifies Medical Diagnosis, Electronics, 34;24, p 52-55.
