Published:2009/7/23 23:05:00 Author:Jessie | From:SeekIC

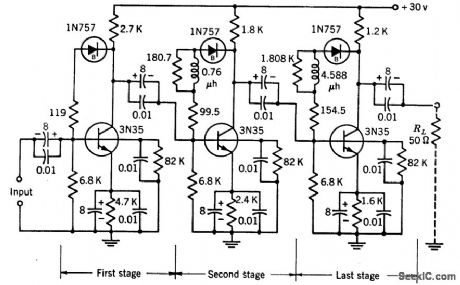

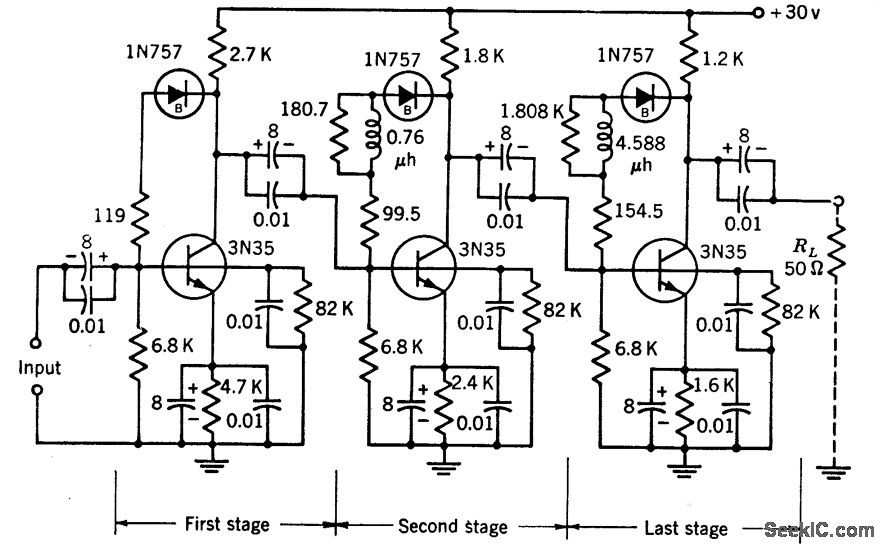

Employs feedback around each of its three stages, with zener diode for stabilizing collector. emitter voltage. Voltage and current amplification are 20 db, and useful frequency range is 3.2 kc to 32 Mc,-Texas Instruments Inc., Transistor Circuit Design, McGraw-Hill, N.Y., 1963, p 267.
