SHUNT_PEAKED_INTERSTAGE

Published:2009/7/23 23:31:00 Author:Jessie | From:SeekIC

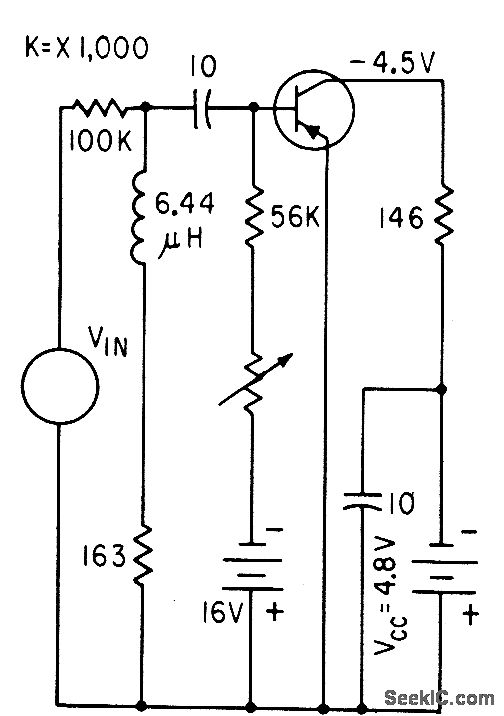

Pole-zero cancellation design procedure for using shunt peaking gives simple cascaded broadband video amplifier. Gain is 10.4 and bandwidth is 1.05 Mc.-R. 5. Pepper and D. O. Pederson, Designing Shunt-Peaked Transistor Amplifiers, Electronics, 33:49, p 68-70.
