SEGMENTED_SWEEP_DISPLAY

Published:2009/7/24 3:03:00 Author:Jessie | From:SeekIC

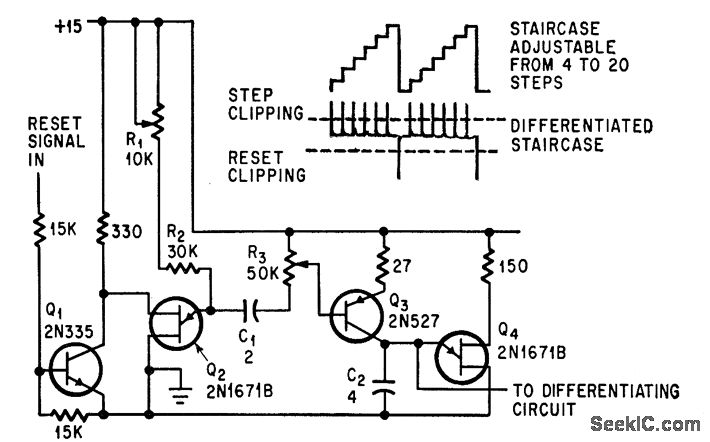

Staircase voltage builds up across C2 when pulses from Q2 turn Q3 on momentarily. R3 controls voltage amplitude of each step. R1 controls rate of free-running oscillator tube.-J. E.Russell, Ten Signals at a Glance, Electronics, 37:19, p 54-57.
