SCS_SHIFT_REGISTER

Published:2009/7/24 2:01:00 Author:Jessie | From:SeekIC

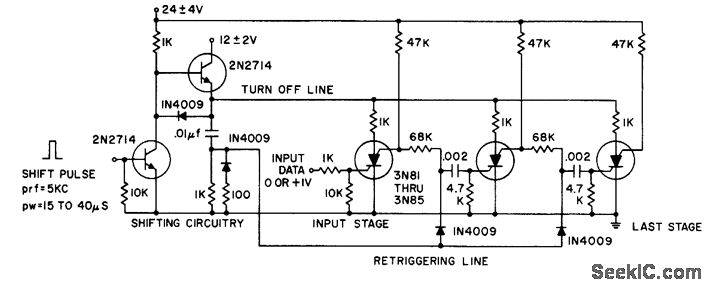

Shill pulse turns off all silicon controlled switches. Trailing edge of turnoff pulse is differentiated for turning on appropriate stages. 2N2714 will easily drive ten scs stages.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 432.
