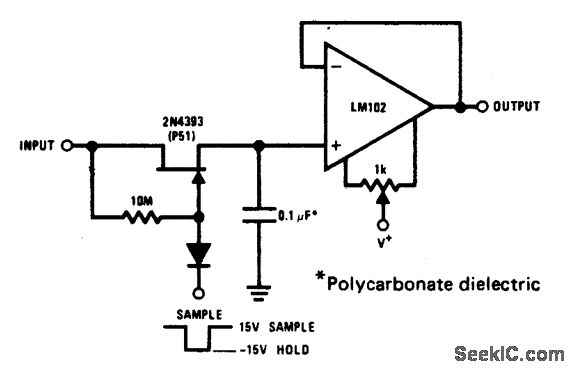

SAMPLE_AND_HOLD_WITH_OFFSET_ADJUSTMENT

Published:2009/6/30 3:35:00 Author:May | From:SeekIC

The 2N4393 JFET was selected because of its low IGss (＜100 pA), very low ID(off) (＜ 100 pA) and low pinchoff voltage. Leakages of this level put the burden of circuit performance on clean, solder-resin free, low leakage circuit layout.
