IC AM radio circuit

Published:2011/11/28 21:45:00 Author:Ecco | Keyword: IC, AM radio | From:SeekIC

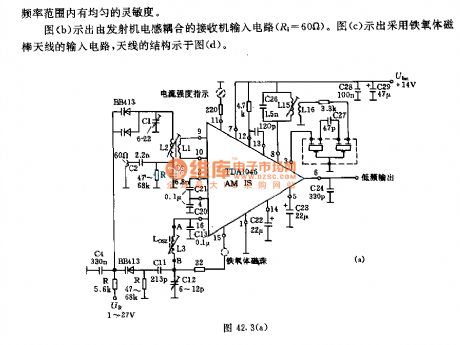

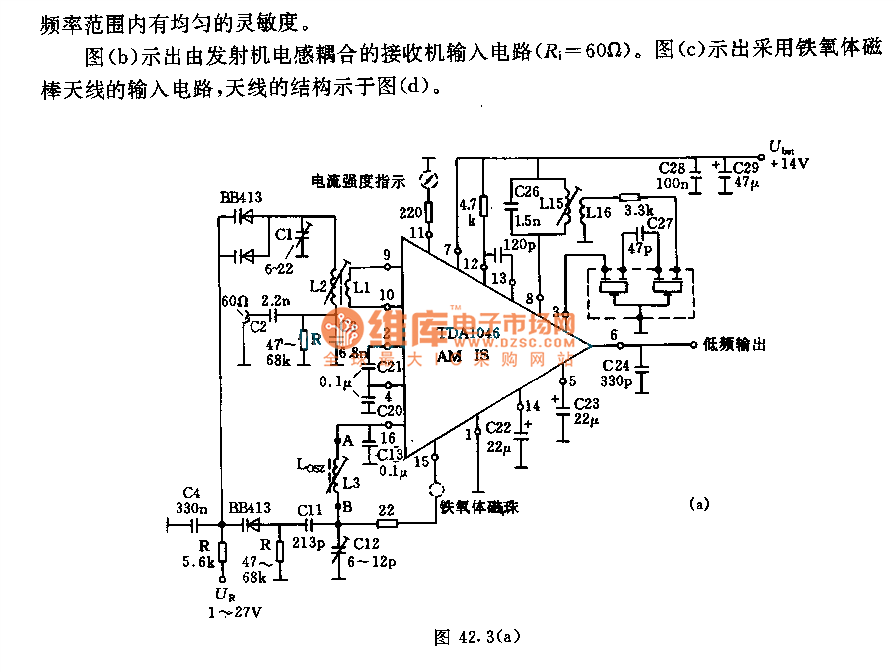

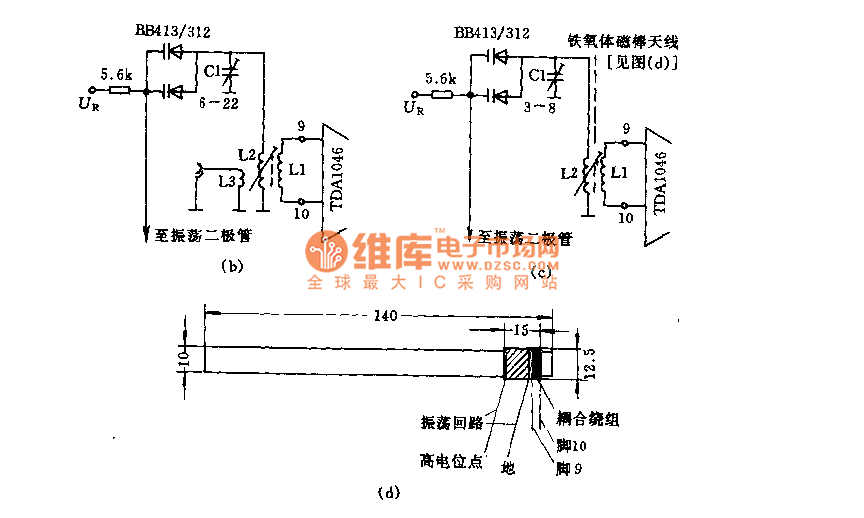

The receiver ( Figure a) input circuit is supplied by the 60Ω generator. Low -pass filter allows the entire frequency range with uniform sensitivity . Figure b shows the receiver input circuit coupled with transmitter inductive (Ri = 60Ω). Figure c shows the input circuit with ferrite ferrite antenna, the antenna structure is shown in Figure (d).
