RGB_SYNC_COMBINER_CIRCUIT

Published:2009/7/14 21:49:00 Author:Jessie | From:SeekIC

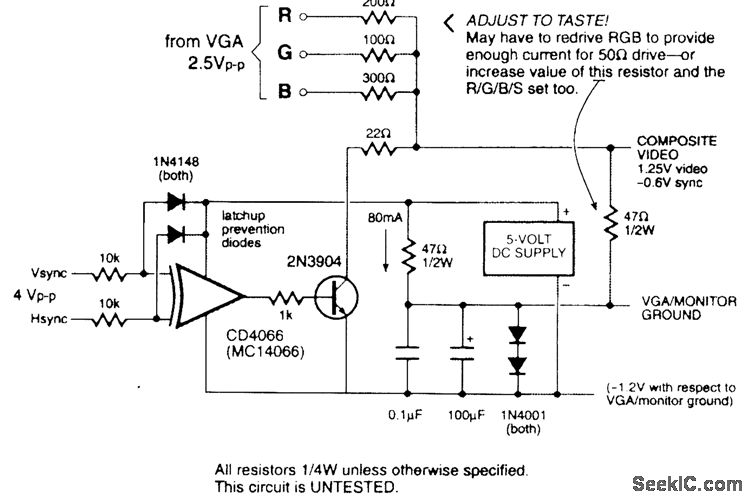

This circuit shows one way of combining RGB and sync signals from a computer to form an NTSC B/W video signal that is viewable on an ordinary video monitor.
