RC_DECADE_BOX

Published:2009/6/17 4:01:00 Author:May | From:SeekIC

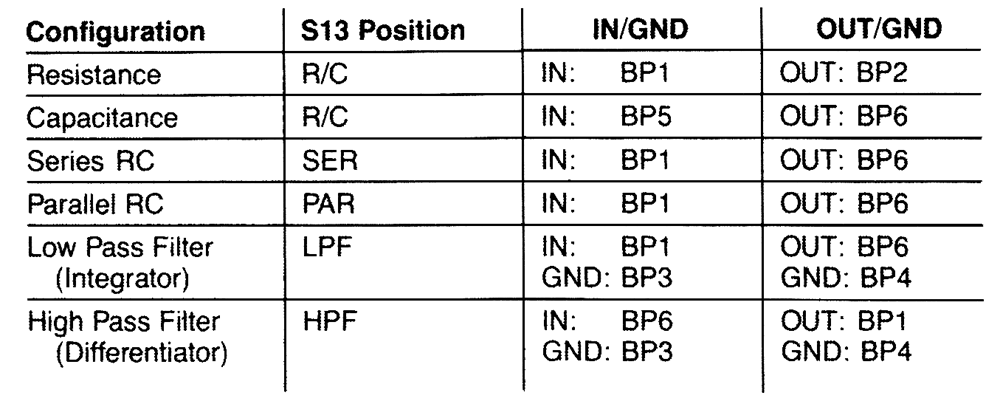

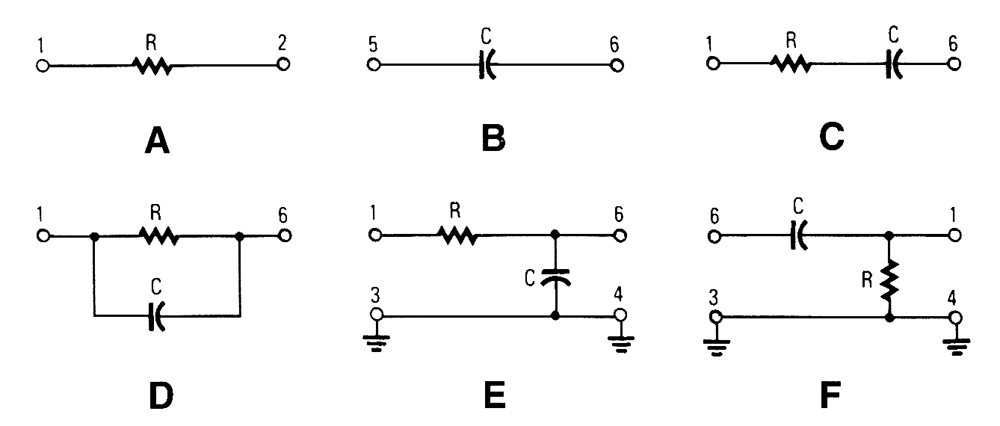

THE VARIOUS CONFIGURATIONS are set using S13: (a) resistor only and (b) capacitor only (both in position R/C); (c) series RC (position SER); (d) parallel RC (position PAR); (e) Low-Pass Filter (position LPF); and (f) High-Pass Filter (position HPF). The terminal numbers listed are those of bindinq-oosts BP1-BP6. This decade box can be set for any resistance value between 10 Ω and 11.1 MΩ in 10-Ω stops. A switch can be used to configure several RC configurations. Use close tolerance components in the circuit. Ifpossible, check components with an accurate bridge or other means to ensure accuracy.
