Precision_clamp

Published:2009/7/24 22:53:00 Author:Jessie | From:SeekIC

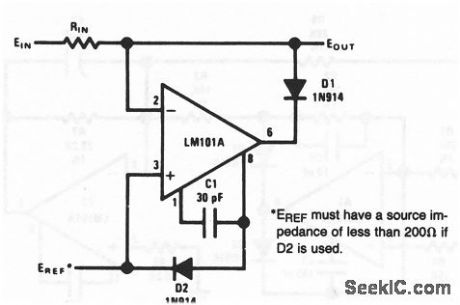

In this circuit, the output is precisely clamped from going more positive than the reference voltage, preventing the op amp from saturating when D1 is reverse biased.
