Precision_VCO

Published:2009/7/25 3:21:00 Author:Jessie | From:SeekIC

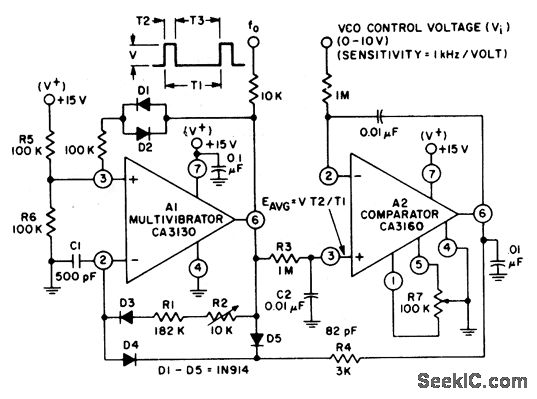

This voltage-controlled oscillator operates with a tracking error in the order of 0.02％、and a temperature coefficient of 0.01％/℃．Adjust both R2 and R7 for an output sensitivity of 1-kHz/V（from 0-to 10-V input）
