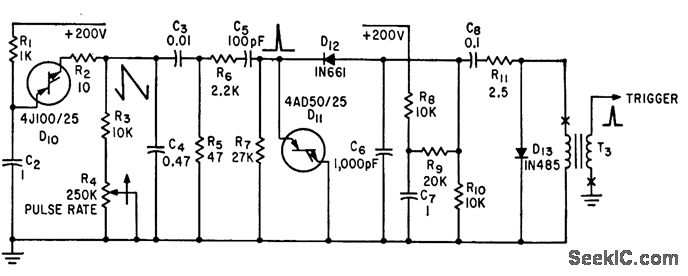

Trigger generator for scr modulator uses, two-layer and four-layer diodes to provide pulse burst, repetition rates up to 25 kc.-H.G. Heard, Controlled Rectifier Produces Quarter-Megatwatt Pulse Power, Electronics, 34:25, P 54-55.
