Published:2009/7/21 4:24:00 Author:Jessie | From:SeekIC

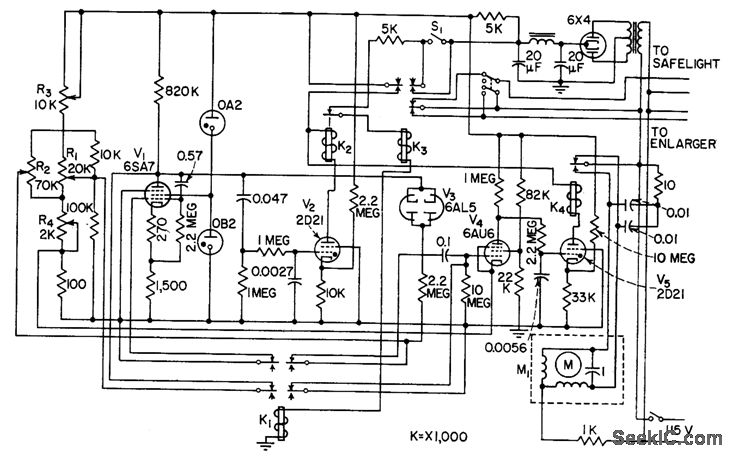

Uses radar phantastron circuit to give correct combination of exposure time and color filtier for desired contrast and density. R1 sets exposure time from 6 to 60 seconds and R2 regulates contrast.-J. D. Weir, Print Timer Controls Density and Contrast, Electronics, 31:7, p 108-109.
