PREFERRED_LOW_LEVEL_AMPLIFIER

Published:2009/7/23 23:06:00 Author:Jessie | From:SeekIC

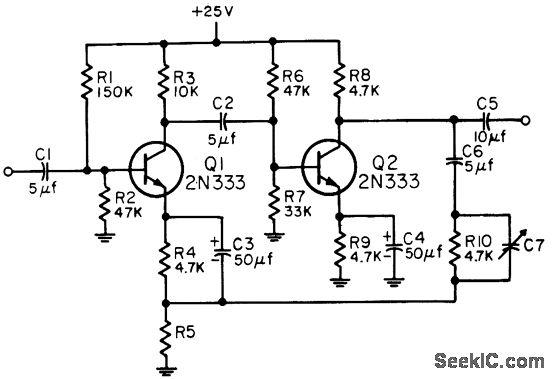

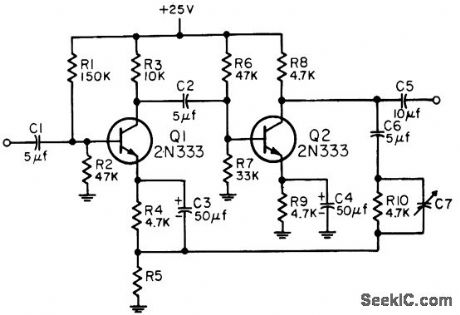

Serves as high-gain amplifier providing stable gain over wide temperature range, with maximum output of 2 v. Is noninverting, has input impedance of 20,000 ohms, and will operate into loads above 10,000 ohms. Several circuits may be cascaded. 2N333 has been dropped front Preferred list, but 2N335 can be used if operating point is adjusted for its larger beta. Voltage gains of 45, 20, or 10 ore obtained for R5 = 100, 220, and 470 ohms respectively.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. II, Semiconductor Device Circuits, PSC 18 (originally PC 201), p 18-2.
