PREFERRED_BEAM_POWER_DRIVER

Published:2009/7/23 23:08:00 Author:Jessie | From:SeekIC

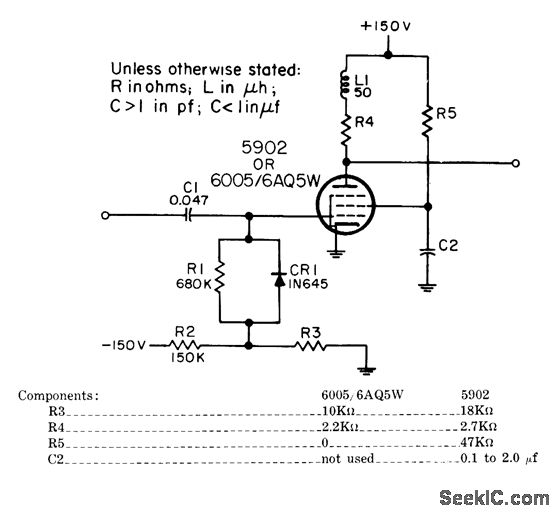

Used in search radars to amplify video signals to 60.v level required for intemsity modulation of cathode-ray indicator. Input polarity is positive. Amplification is 7.-NBS, Hand-book Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. I, Electron Tube Circuits, 1963, PC 28, p 28-2.
