PRECISION_WELD_INTERVAL_TIMER

Published:2009/7/24 2:21:00 Author:Jessie | From:SeekIC

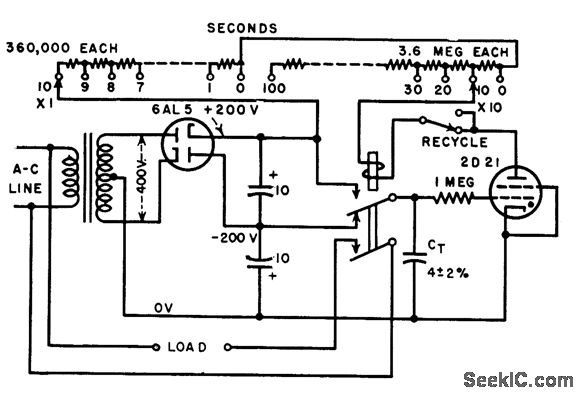

Stable timer provides intervals repetitive to accuracy of 0.75%, from 1 to 110 sec in 1-sec increments. Can be used for welder, enlarger, and other industrial controls.-J. Markus and V. Zeluff, Handbook of Industrial Electronic Control Circuits, McGraw-Hill, New York, 1956, p 292.
