PORTABLE_TV_TUNER

Published:2009/7/23 21:39:00 Author:Jessie | From:SeekIC

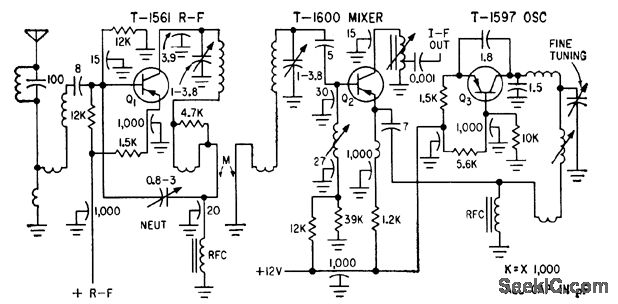

Three transistors in vhf tuner provide 19 db power gain even for channel 13, with 12 db noise factor. V. Mukai and P. V. Simpson, Transistorized Tuners For Portable Television, Electronics, 33:12, p 76-78.
