PEAK_VOLTMETER_FOR_NARROW_PULSES

Published:2009/7/24 0:01:00 Author:Jessie | From:SeekIC

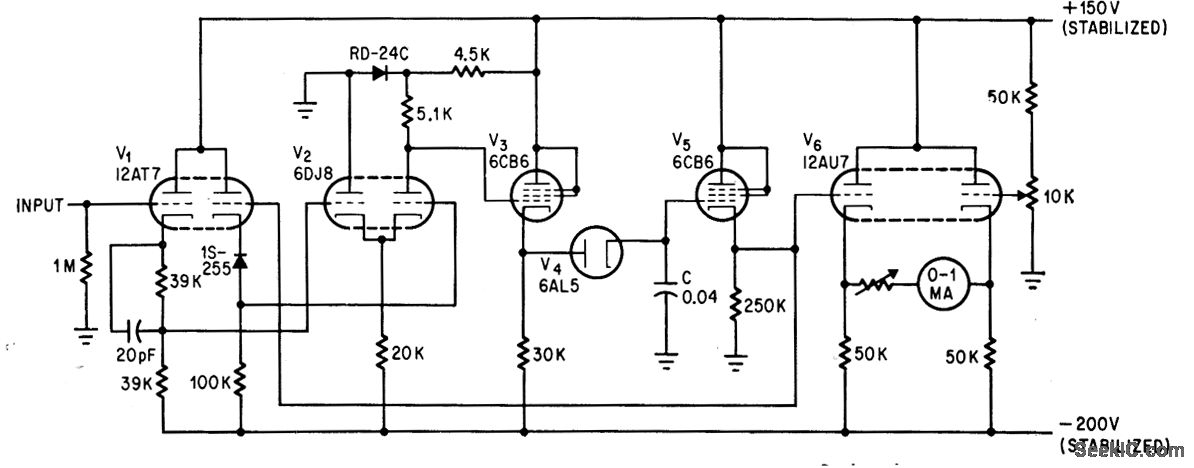

Addition of dual-triode amplifier V2 to conventional peak voltmeter reduces charging time constant while increasing available time for measuring peak value. Linearity is good up to 40 v.-M. Uno, Amplifier Improves Peak Voltmeter Response, Electronics, 37:14, p 73.
