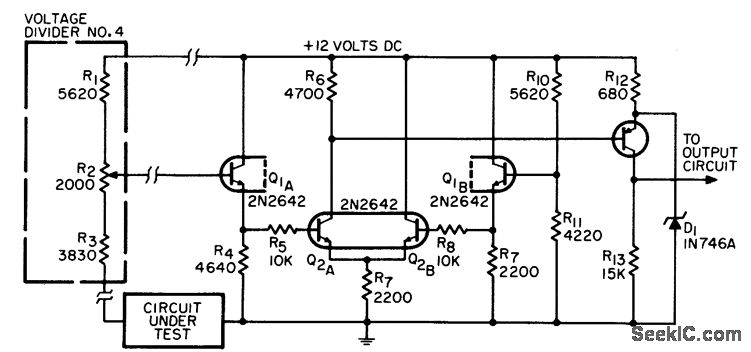

Used for monitoring nonseparable parallel paths for continuity in automatic testing equipment. Current through circuit under rest is limited, to prevent damage to low-power circuits. Resistance levels for continuity checks are set at 5, 20, 100, and 1,000 ohms.-R. H. Wassum, Parallel-Path Continuity-Checking Circuit, EEE, 14:8, p 164-166.
