X0640CE Field Scanning Output IC Internal Circuit

Published:2011/7/1 7:08:00 Author:Robert | Keyword: Field, Scanning, Output, IC, Internal | From:SeekIC

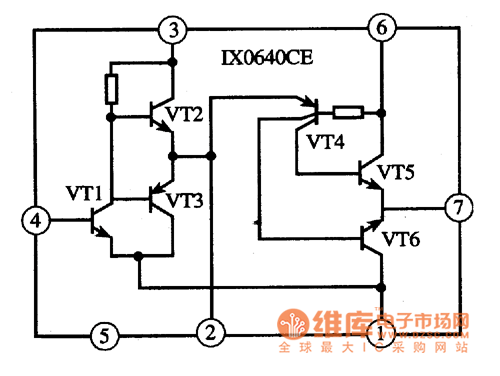

The 1X0640CE is a field scanning output IC produced by Japanese SHARP company which is widely used in many kinds of domestic and imported color TV sets. The 1X0640CE IC has internal field excitation circuit, field output circuit, vertical blanking circuit and overheat protection circuit. Its internal circuit is shown in the picture. The picture shows the 1X0640CE IC's internal circuit.
