MA2810 Power Switching Regulator Integrated Circuit

Published:2011/7/1 10:02:00 Author:Robert | Keyword: Power, Switching, Regulator, Integrated | From:SeekIC

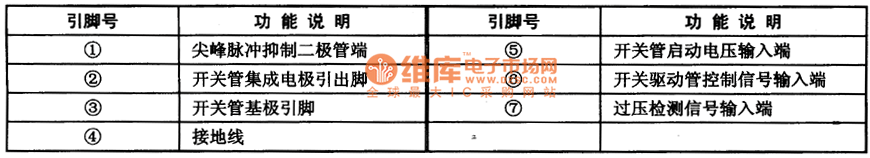

The MA2810 is a power switching regulator IC produced by the Japanese SHm DENGEN Co., Ltd. It is widely used in the panasonic DV707 series frequency changer. 1.Its functional features. The MA2810 IC's shape is shown in picture (a) which has internal switching tube VT1, incentive triode VT2, spike suppression diode VD1, overvoltage detecting tube VD4 and so on. Its internal circuit's structure is shown in picture (b). 2.Its pin's functions. The MA2810 IC uses 7-pin single-line package and its pin's functions are listed in the table. The picture shows the MA2810 IC's shape and its internal circuit. The table shows the MA2810 IC's pin's functions.
