M658395P Digital Time-Delay Reverb Integrated Circuit

Published:2011/7/9 5:04:00 Author:Robert | Keyword: Digital, Time-Delay, Reverb, Integrated | From:SeekIC

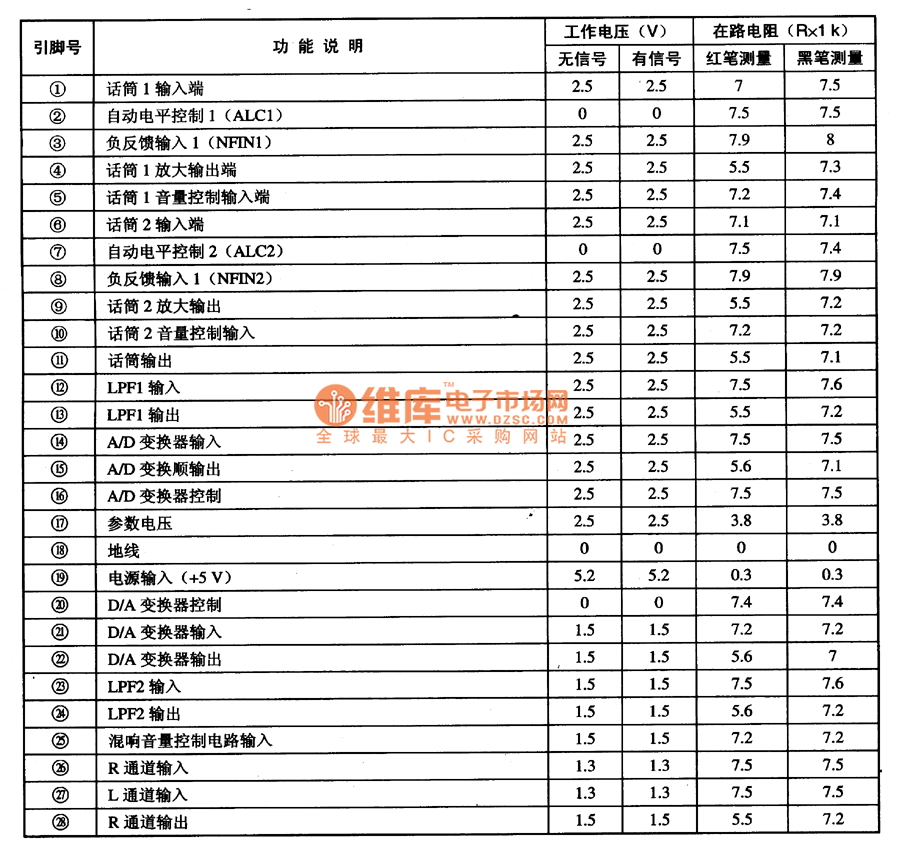

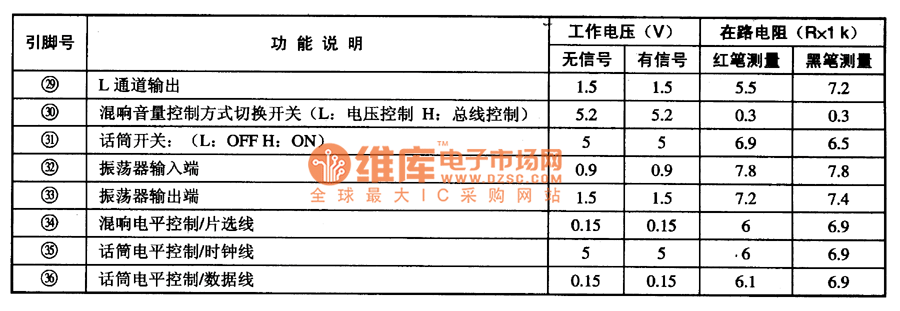

The M658395P is a digital time-delay reverb IC produced by the Mitsubishi company. It is widely used as the Kara OK signal processing unit in home audio, TV audio, car audio etc. 1.Its functional features. The M658395P IC has internal A/D and D/A convertion circuit, low-pass filter (LDF) circuit, 16K memory (RAM), automatic voltage level control circuit (ALC), microphone amplification circuit, oscillation circuit and other some auxiliary function circuits. Its internal circuit diagram is shown in the picture. 2.Its pin's function and data. The M658395P IC uses 36-pin dual package and its pin's function and data is listed in the table. The picture shows the M658395P IC's internal circuit diagram. The table shows the M658395P IC's pin's function and data.
