M58659P Memory Integrated Circuit

Published:2011/6/28 7:28:00 Author:Robert | Keyword: Memory, Integrated | From:SeekIC

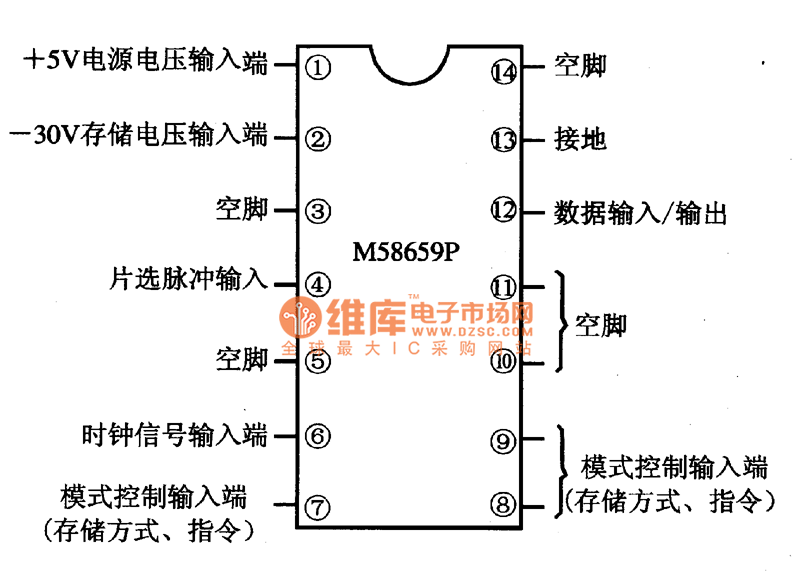

The M58659P is a memory IC produced by the Japanese Mitsubishi company which is widely used in TV sets, audio equipments, air conditioners, computers and other control systems. 1.Its functional features. The M58659P IC has internal digital input/output interface circuit, memory matrix circuit and data registers circuit and so on. 2.Its pin's functions and data. The M58659P IC uses 14-pin dual-in-line package. Its pin's functions are shown in the picture 8-36. Its working parameters are listed in table 8-35. The picture shows the M58659P IC's pinout and pin's functions. The table shows the M58659P IC's working parameter.
