M58658P Memory Integrated Circuit

Published:2011/6/28 7:34:00 Author:Robert | Keyword: Memory, Integrated | From:SeekIC

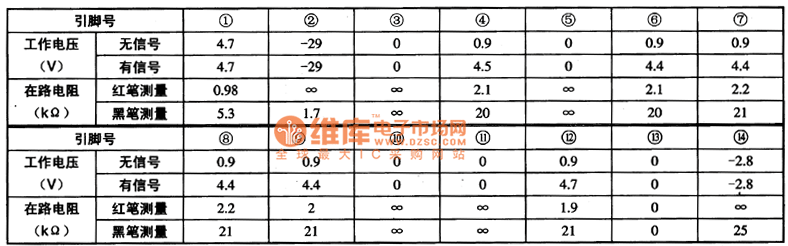

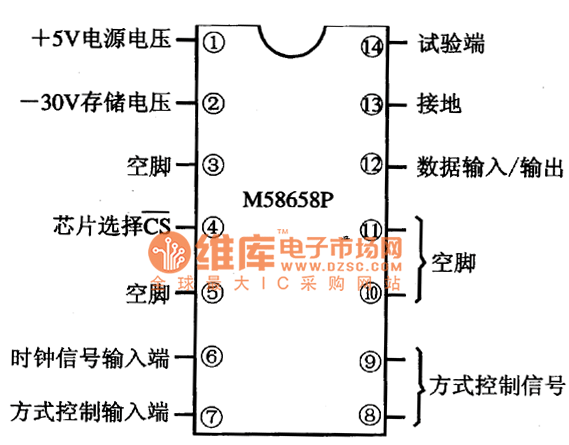

The M58658P is a memory IC produced by the Japanese Mitsubishi company which is widely used in TV sets, air conditioners,remote-control fansand other cases which needto store information. 1.Its functional features. The M58658P IC has internal memory matrix circuit, digital input/output interface circuit, and registers circuit and so on. 2.Its pin's functions and data. The M58658P IC uses 14-pin dual-in-line package. Its pin's functions are shown in the picture andits working parameters are listed in the table. The picture shows the M58658P IC's pin's functions. The table shows the M58658P IC's working parameter.
