M58655P Memory Integrated Circuit

Published:2011/6/28 7:43:00 Author:Robert | Keyword: Memory, Integrated | From:SeekIC

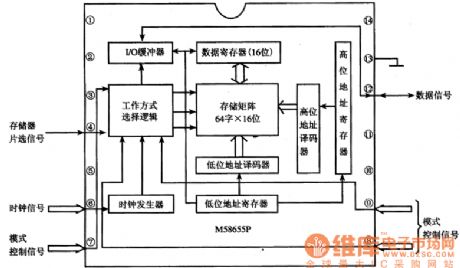

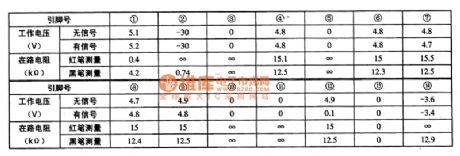

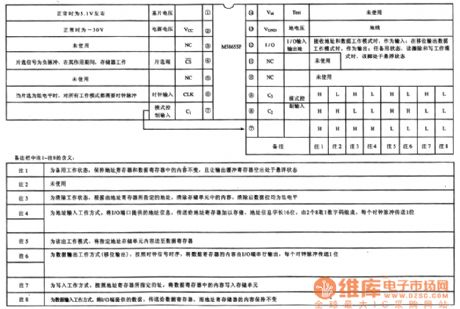

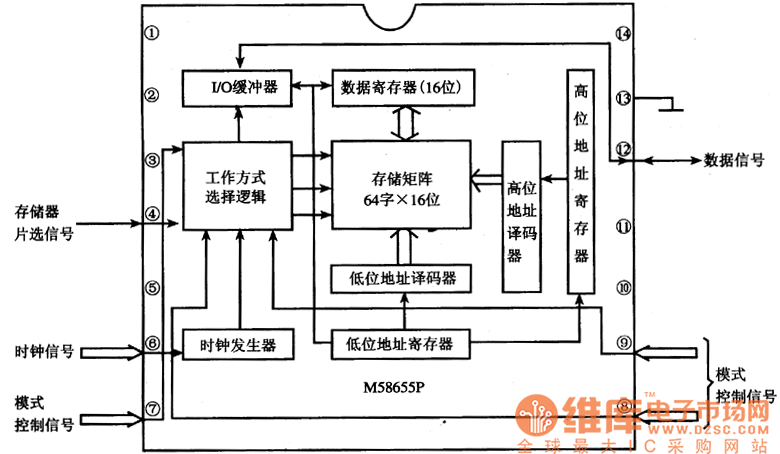

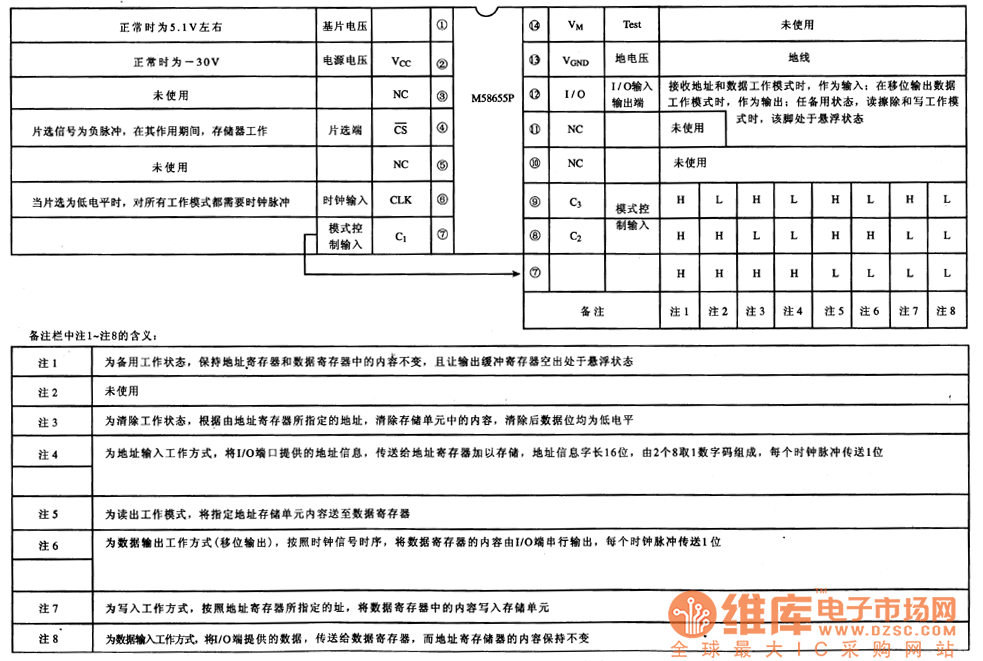

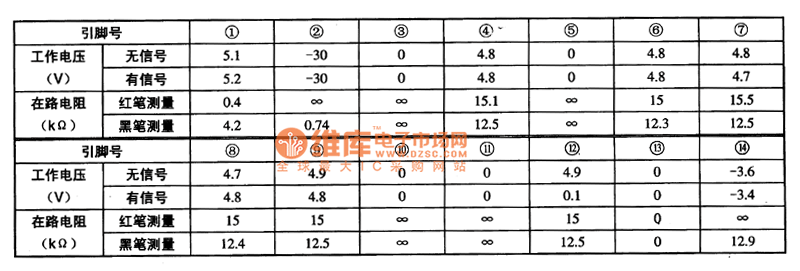

The M58655P is a memory IC produced by the Japanese Mitsubishi company which is widely used in TV sets, audio equipments, air conditioners and other control systems. 1.Its functional features. The M58655P IC has internal UO buffer, data registers, memory matrix, working mode selection logic circuit, clock generater and registers, address decoding circuit and other some secondary function circuit. Its internal circuit diagram is shown in the picture. The picture shows the M58655P IC's internal circuit diagram. 2.Its pin's functions and data. The M58655P IC's pin's functions is shown in the picture and its working parameters is listed in the table. The picture shows the M58655P IC's pin's functions. The table shows the M58655 IC's working parameters.
