KA8601 IC Typical Application Circuit

Published:2011/6/17 21:04:00 Author:Robert | Keyword: IC, Typical, Application | From:SeekIC

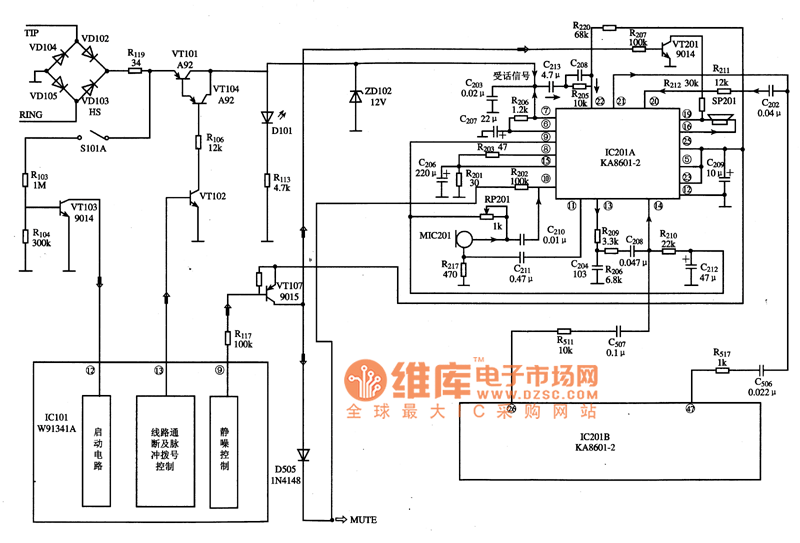

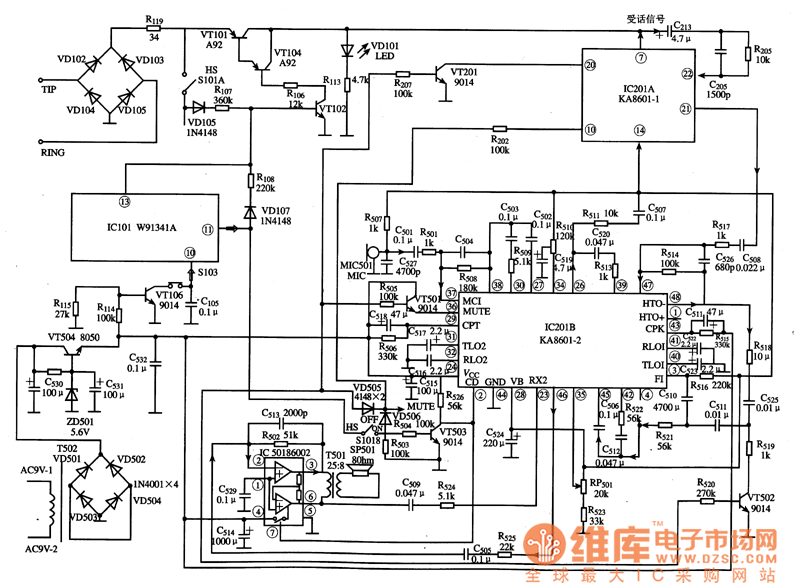

The KA8601 is a special calling IC produced by the Samsung company which is more used in all-digital type recording telephones such as the HL868P/TSD series all-digital recording telephones and so on. The KA8601 is a large-scale special calling IC which can be used to achieve all the functions of hand-held calling and hand-free calling. The hand-held calling circuit composed of KA8601 IC is shown in picture 1 and the hand-free calling circuit composed of KA8601 is shown in picture 2. The picture 1 shows the hand-held calling typical application circuit composed of KA8601 IC. The picture 2 shows the hand-free calling typical application circuit composed of KA8601 IC.
