HT6337A IC Typical Application Circuit

Published:2011/6/24 7:15:00 Author:Robert | Keyword: IC, Typical, Application | From:SeekIC

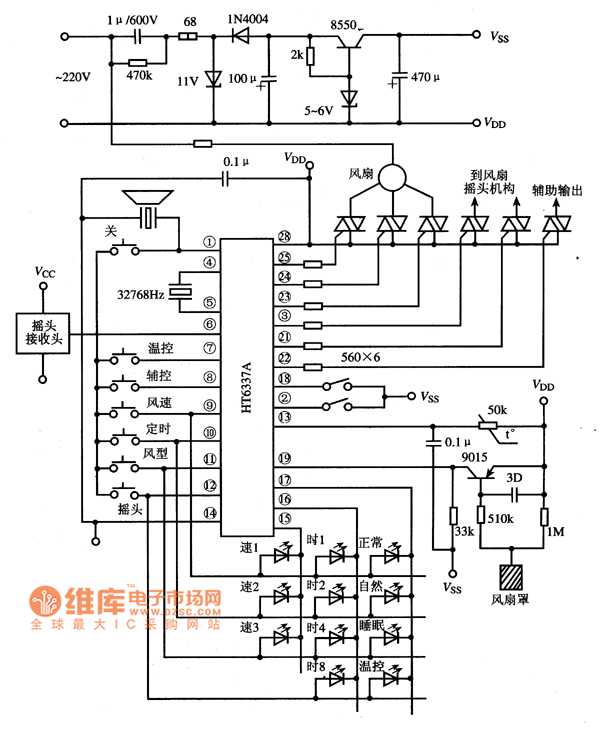

The HT6337A is a fan single-chip micro-computer IC which is widely used in many brands of remote-control fans. The fan remote-control system typical application circuit composed of HT6337A is shown in the picture. The picture shows the HT6337A IC's typical application circuit.
