HIC1026A Integrated Circuit Internal Principle Circuit

Published:2011/6/14 23:20:00 Author:Robert | Keyword: Integrated Circuit, Internal, Principle | From:SeekIC

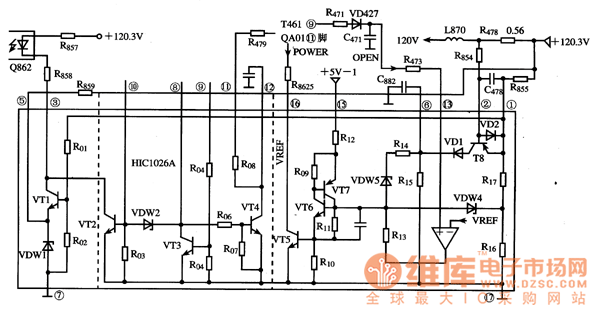

The HICl026A is a multi-function power integrated circuit produced by the Hitachi company which is widely used in Toshiba AG series rear-projection color TV. The picture shows the HICl026A integrated circuit's internal principle circuit.
