FSK Demodulator/Tone Decoder with RC2211N

Published:2012/9/10 20:58:00 Author:Ecco | Keyword: FSK Demodulator, Tone Decoder | From:SeekIC

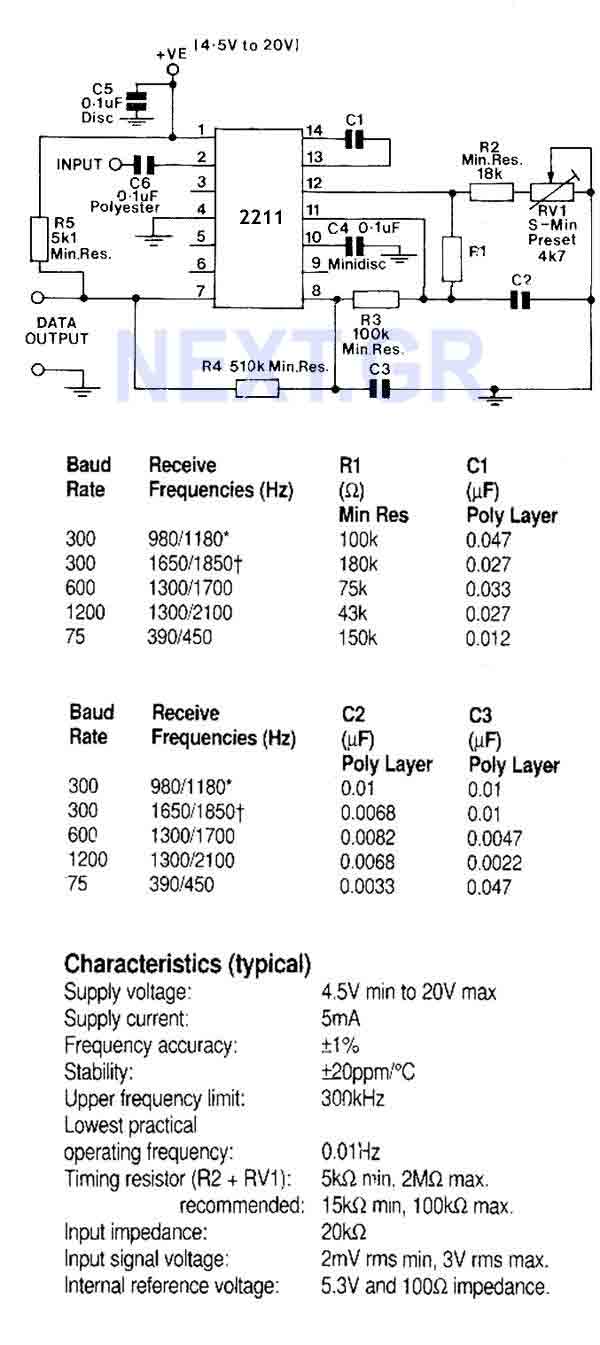

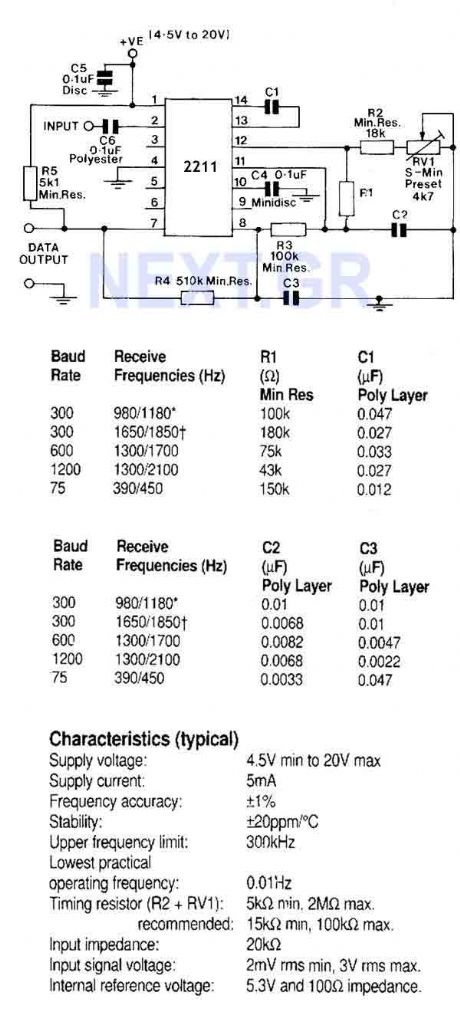

A monolithic phase locked loop for data communications. The IC contains a basic phase locked loop for tracking an input signal within the pass band, a quadrature phase detector which provided carrier detector and an FSK voltage comparator which provides FSK demodulation. In the circuit shown, the IC is used as an FSK demodulator such as would be found in the receiver circuit of a modem. Source: discovercircuits
