CXD1167Q Digital Signal Processing Integrated Circuit

Published:2011/7/10 2:55:00 Author:Robert | Keyword: Digital, Signal, Processing, Integrated | From:SeekIC

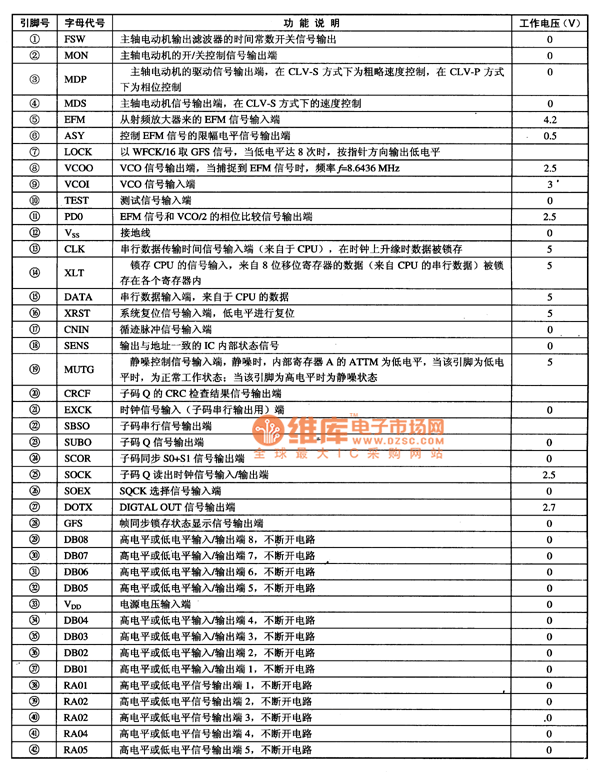

The CXD1167Q is a digital signal processing IC produced by the Japanese Sony company which is widely used in the car CD audio systems and home players. 1.Its functional features. The CXD1167Q IC has internal spindle motor control circuit, EFM signal from the RF amplifier processing circuit, CVO (voltage controlled oscillator) signal processing circuit, serial data transmission clock signal circuit, communication to CPU interface circuit, reset control circuit, squelch control circuit, sub-code Q signal processing circuit, clock oscillation circuit, mode selection signal processing circuit, and other some control and auxiliary function circuits. 2.Its pin's function and data. The CXD1167Q IC uses 80-pin square package structure and its pin's function and data is listed in table 1. The table shows the CXD1167Q IC's pin's function and data.
