The CX7959 is a memory IC produced by the Japanese Sony company. It is widely used in the Sony series color TV sets and the derived products.
1.Its functional features.
The CX7959 IC has internal memory matrix circuit, input/output interface circuit, testing circuit and so on.

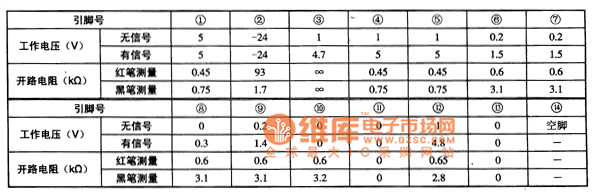

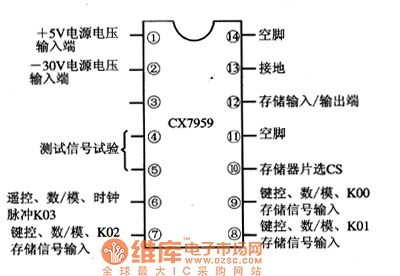

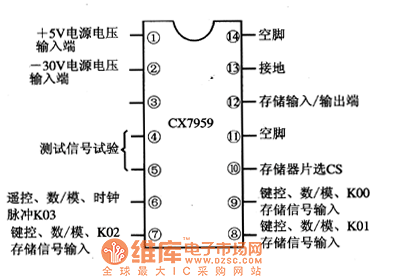

2.Its pin's function and data.The CX7959 IC uses 14-pin dual package. Its pin's functions are shown in picture 1 and its working parameters are listed in table 1.The picture 1 shows the CX7959 IC's pin's functions.The table 1 shows the CX7959's working parameters.
