CKP1008S Single-Chip Micro-Computer Integrated Circuit

Published:2011/7/8 23:59:00 Author:Robert | Keyword: Single-Chip Micro-Computer Integrated Circuit | From:SeekIC

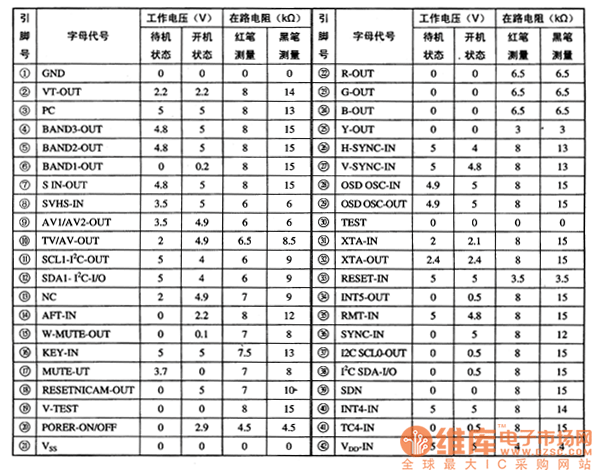

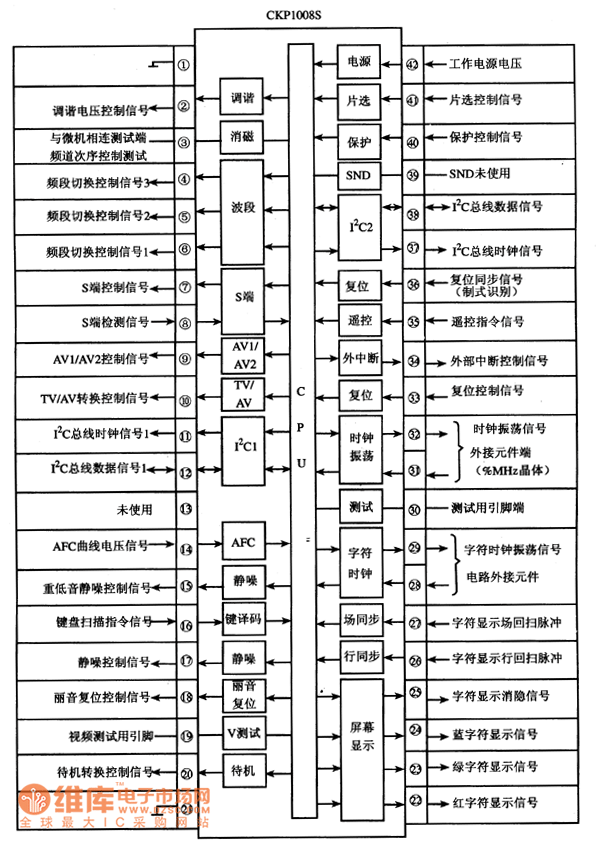

The CKP1008S is a single-chip micro-computer IC which is widely used in many kinds of screens of the Konka series color TV sets. 1.Its functional features. The CKP1008S IC's internal part is made up of CPU, reset control circuit, clock oscillation circuit, key command decoding circuit, I2C bus control circuit, standby switch control circuit, screen display character generating and processing circuit, remote-control command signal processing circuit, testing circuit, TV/AV switch circuit and other some control and auxiliary function circuits and so on. Its internal circuit diagram and pin's function and signal flowing is shown in picture 1. The picture 1 shows the CKP1008S IC's internal circuit diagram and pin's function and signal flowing. 2.Its pin's function and data. The CKP1008 IC uses 42-pin dual package. Its pin's function is shown in picture 1 and its pin's letter code and data is listed in table 1. The table 1 shows the CKP1008 IC's pin's letter code and data.
