CH50212 Single-Chip Micro-Computer Integrated Circuit

Published:2011/7/9 2:28:00 Author:Robert | Keyword: Single-Chip, Micro-Computer, Integrated | From:SeekIC

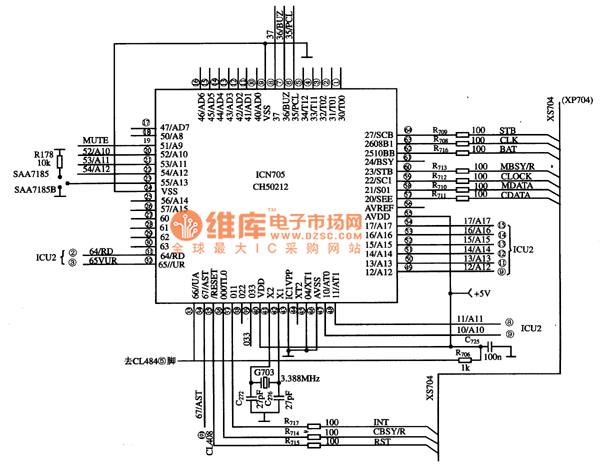

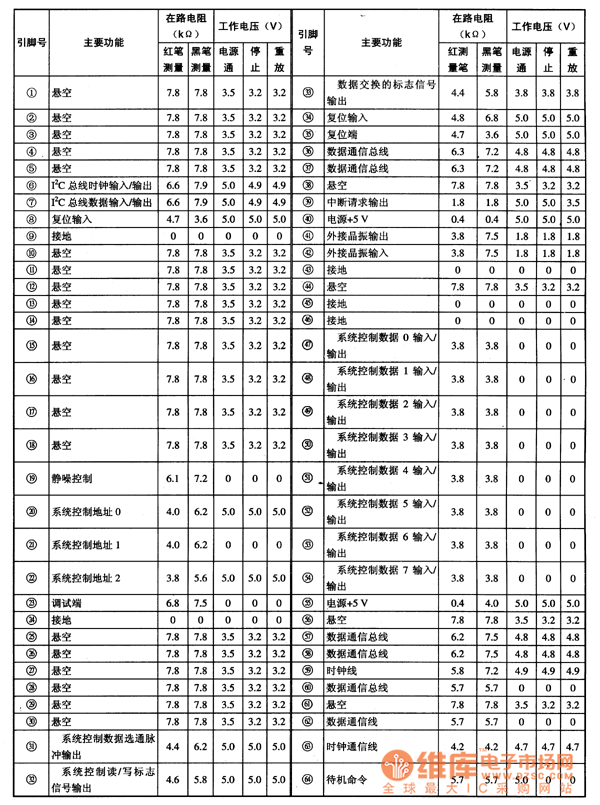

The CH50212 is a single-chip micro-computer control IC which is widely used in many kinds of Changhong series players. 1.Its functional features. The CH50212 IC's internal part is mainly made up of I(2)C bus circuit, clock oscillation circuit, reset circuit, system control data input/output interface circuit, reading/writing control circuit and so on. 2.Its pin's function and data. The CH50212 IC uses 64-pin square package and its pin's function and data is shown in table 1. The table 1 shows the CH50212 IC's pin's function and data. 3.Typical application circuit. The system control typical application circuit composed of CH50212 IC is shown in picture 1. The picture 1 shows the CH50212 IC's typical application circuit.
