Optoisolator_driver_for_resistive_loads

Published:2009/7/22 6:02:00 Author:Jessie | From:SeekIC

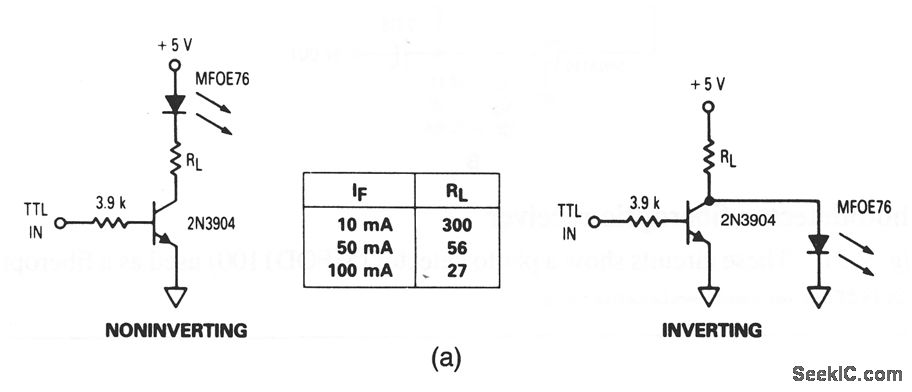

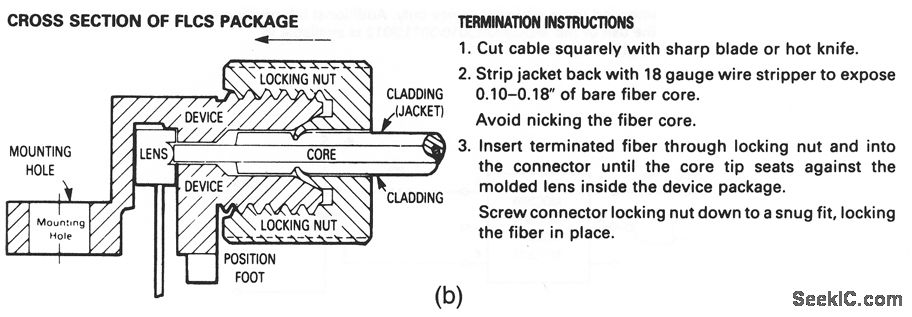

These circuits show a visible red LED (MFOE76) that is used as fiberoptic drivers for both noninverting and inverting TTL inputs. Figure 9-34B shows typical fiberoptic termination and assembly for both receivers and transmitterS.
