Op_amp_function_generator

Published:2009/7/24 21:36:00 Author:Jessie | From:SeekIC

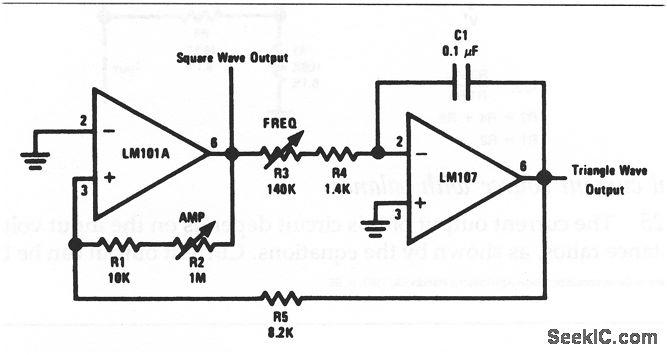

This circuit is the op-amp version of the classic sine/triangle function generator (chapter 5). Notice that both frequency and amplitude are adjustable.
