One_amplifier_one_shot_positive_output_

Published:2009/7/24 9:13:00 Author:Jessie | From:SeekIC

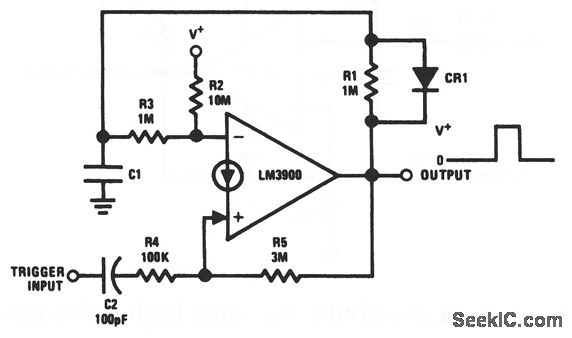

This circuit uses one LM3900 Norton amplifier to provide a positive one-shot output pulse. CR1 (a 1N914 or equivalent) permits rapid re-triggering. National Semiconductor, Linear Applications Handbook, 1991, p. 242.
