One_amplifier_one_shot_negative_output

Published:2009/7/24 9:16:00 Author:Jessie | From:SeekIC

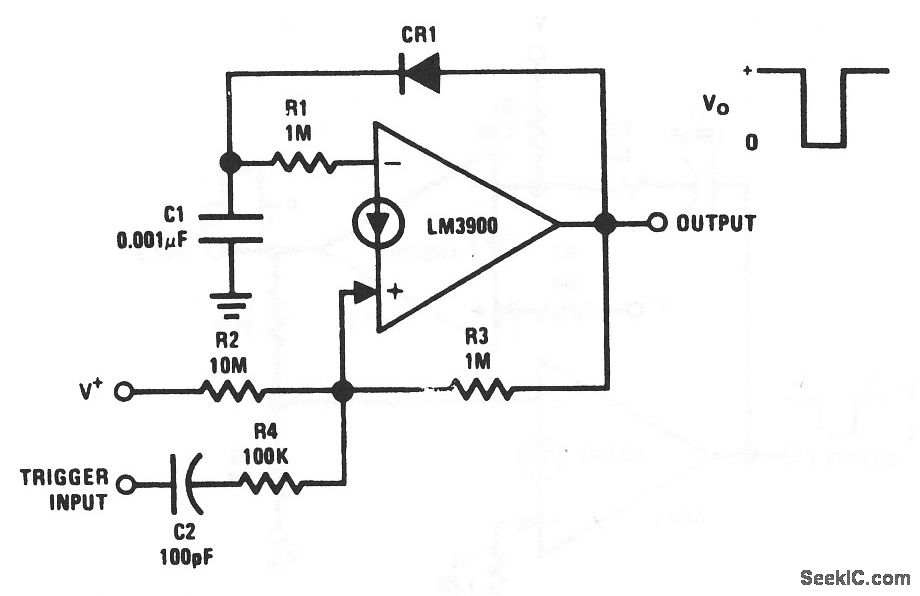

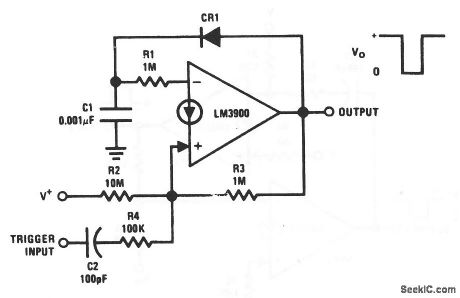

This circuit uses one LM3900 Norton amplifier to provide a negative one-shot output pulse. CR1 (a 1N914 or equivalent) permits rapid re-triggering. National Semiconductor, Linear Applications Handbook, 1991, p. 243.
