OTA_single_control_function_generator

Published:2009/7/24 23:54:00 Author:Jessie | From:SeekIC

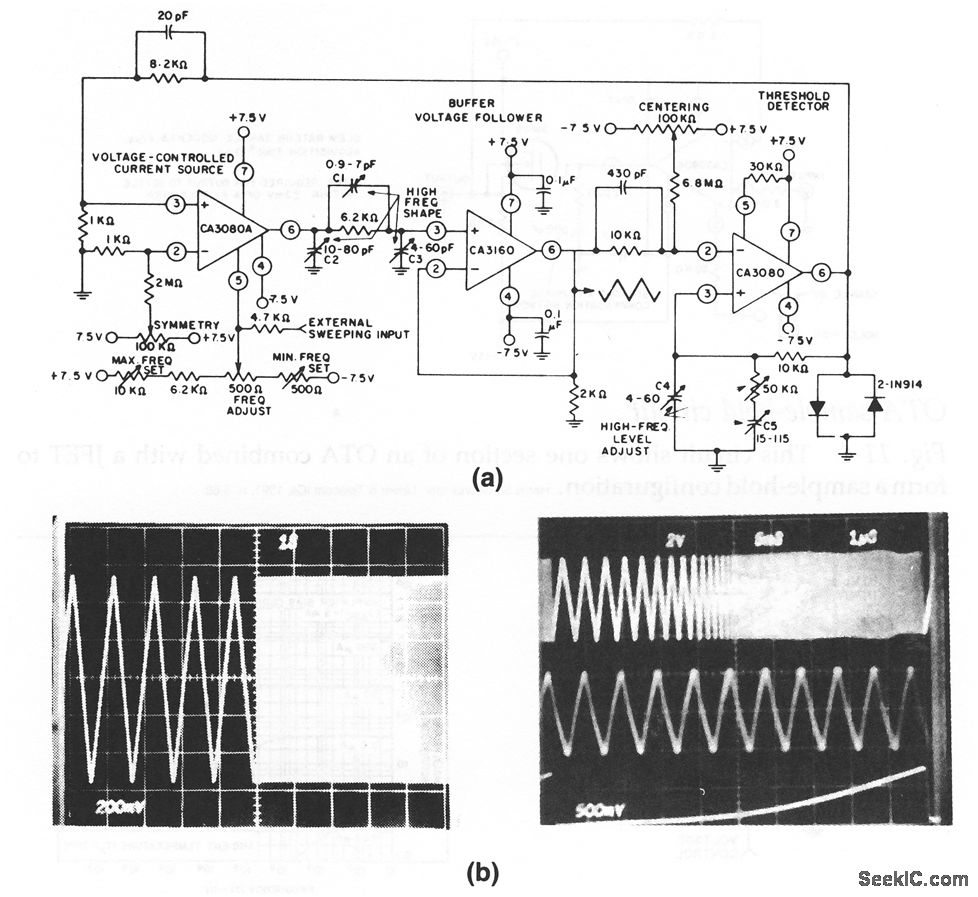

This circuit uses three sections of an OTA to form a single-control function generator that is capable of producing signals in the frequency range from 1 Hz to 1 MHz. All of the adjustments are shown on the schematic. Figure 11 -3B shows the waveforms.
