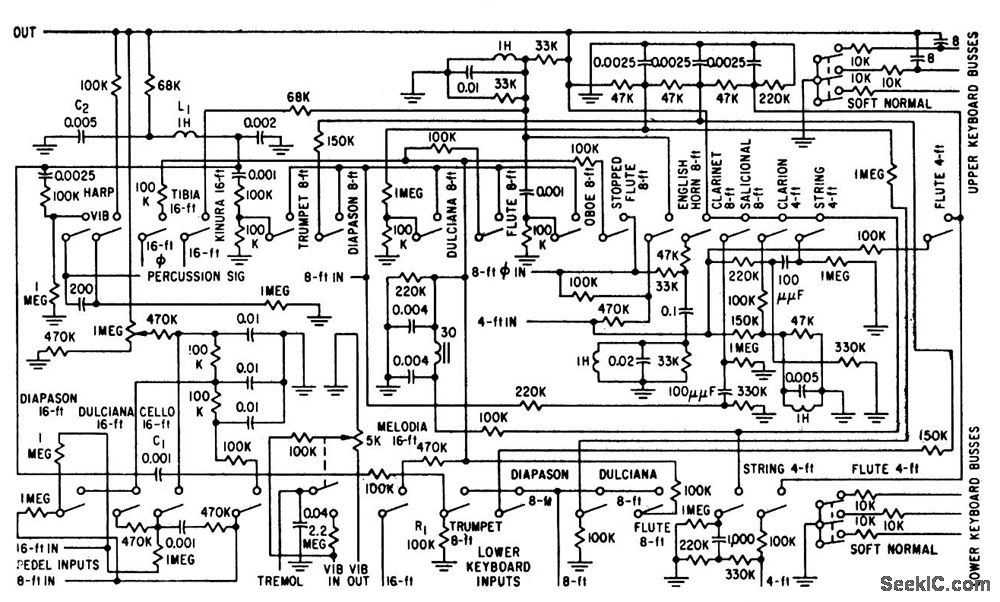

Contains formant filters that transform sawtooth generator signals into waveforms of various instruments. 19 different tone colors or timbres are available, ranging from sharp strings and reeds to bland flutes and pipelike diapasons. Filters are interlocked to produce composite effects.-R. H. Dorf, Electronic Organ Uses Neon Tone Generators, Electronics, 31 ;35,p 36-41.
