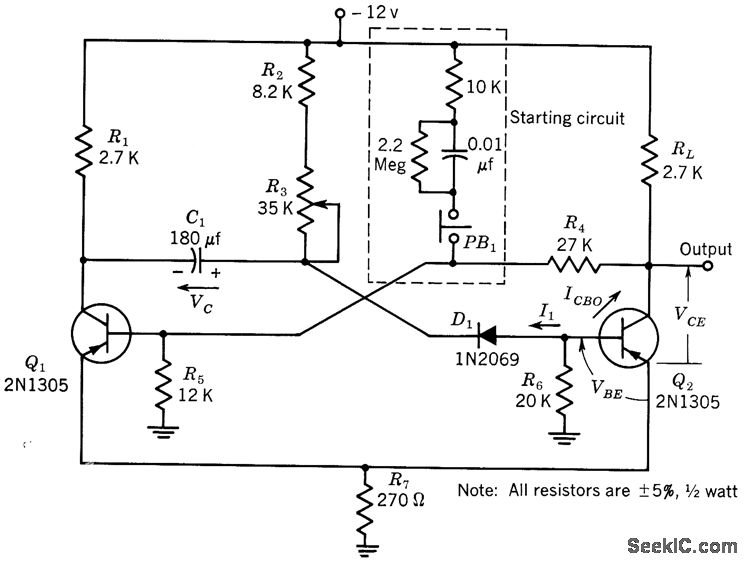

ONE_SHOT_MVBR_TIMER

Published:2009/7/23 22:12:00 Author:Jessie | From:SeekIC

Designed to switch 4-mct load having 12.v supply. Output is -12 v for period that can be adjusted from. 1 to 5 sec. Timing is accurate within 10 from -20 to +60℃.-Texas Instruments Inc., Transistor Circuit Design, McGrctw4iill, N.Y., 1963, p 413.
